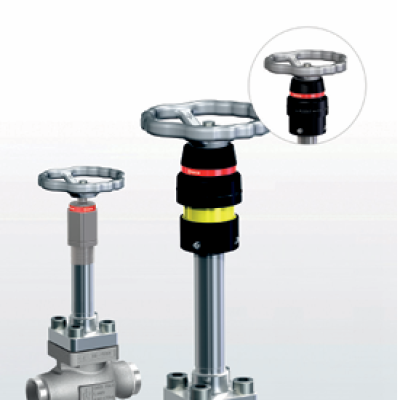

Product informationThe main function of the 2140 shut-off valve is the controlled opening and closing of pipeline sections via the valve seat integrated in the body.Due to the use of high-quality materials, the fitting can be used for cryogenic operation at temperatures down to-196°C. The shut-off valves are approved according to DIN EN 1626.The series is available in the nominal widths DN10 - DN50 and can be designed with connection options for welding ends and welding sockets. The manual valve actuator is operated via an ergonomically shaped handwheel, the open/closed position can be seen at all times via a visual position indicator.The valve upper section can be configured with three different actuator lengths depending on the application and operating environment.connection types Butt weldsSocket weldInternal pipe threadMore information please go link: 2140

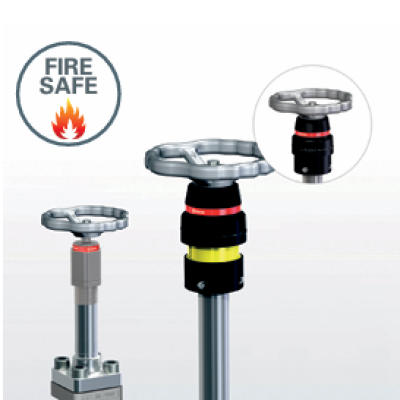

Product informationThe 2141 shut-off valve from GOETZE is a compact stainless steel shut-off valve in a straight-through design, which has been specially developed for use in safety-critical applications with extreme temperature conditions. It combines maximum fire resistance in accordance with ISO 10497:2024 and API 607 (8th edition) with full suitability for cryogenic media down to –196°C.Thanks to its robust stainless steel construction, modular design and an innovative metal secondary seal that is activated in the event of a fire, the valve is ideal for applications with flammable, fire-accelerating or cryogenic media – e.g. methane, ethane, propane, butane, ethylene or acetylene.Certification in accordance with the latest fire safety standards ensures that the shut-off valve remains tight and functional even after 30 minutes of exposure to flames at 1000°C. API 607 (8th edition) imposes stricter requirements on leakage behaviour, temperature measurement and functional testing – a real safety gain for operators in process and energy engineering.The 2141 shut-off valve is manufactured oil- and greasefree, made entirely of non-combustible materials and optionally available with a check function. It is suitable for applications including:Cryogenic applications for cryogenic (liquefied) gasesIndustry and energy sectorPlant in hazardous areas – with flammable or fire-accelerating mediaBiogas plants, power-to-gasGas filling stationsWith the 2141 shut-off valve, GOETZE offers a future-proof solution that combines uncompromising safety with proven quality ‘Made in Germany’.connection types Butt weldsSocket weldInternal pipe threadMore information please go link: 2141

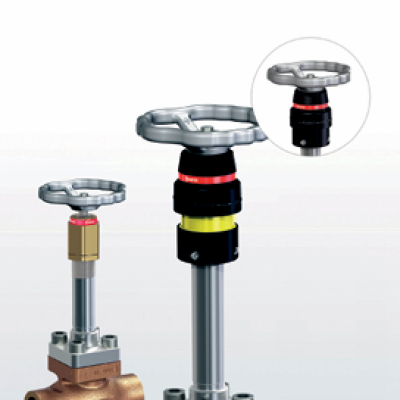

Product informationThe series 2180 is characterised by a corrosionresistant, lead-reduced gunmetal housing and a stainless steel valve upper section.The design of this shut-off valve is identical to that of the Series 2140 and therefore offers excellent value for money.The valve cone is made of brass and adapted to the high-quality stainless steel valve spindle.Threaded and soldered sleeve connections are available. The series also meets the requirements of DIN EN 1626.connection types Internal pipe threadSoldering socketMore information please go link: 2180
