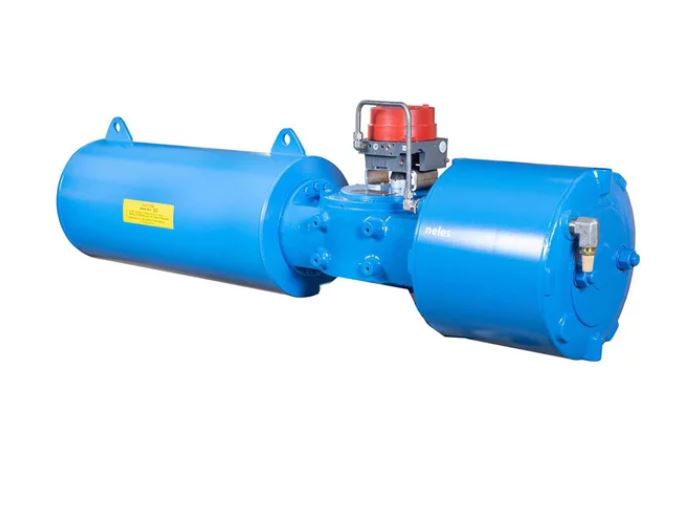

Neles™ heavy duty scotch yoke actuator, series N1
High performance scotch yoke actuator
The Neles scotch yoke N1 series actuator is designed for use with quarter turn valves in both modulating control and on-off service. The N1 actuator’s robust design ensures a long life in harsh environments due to unique features such as its internal tie-rod mechanism. This heavy duty actuator has all major approvals to meet industry standards and customer process requirements.
Features
- Suitable for on/off, modulating and control valve applications in general service, protective service and safety applications eg. ESD or HIPPS
- Ductile cast iron center body, fabricated carbon steel power and spring module provides rugged actuator construction. Alternative materials available upon request
- Suitable for safety integrated systems up to and including SIL 3 accordance with IEC 61508.
- The vent valve has built in non-return function for IP67
- Secondary vent valve function is to detect leakages in the rod seal area of pneumatic cylinder
- Springs are non buckling, lifetime lubricated and epoxy coated
- Ball bearing, flexi joint and the hardened yoke thrust pin bearing are all incorporated into the actuator for longer life time, smoother operation
Applications
- Emergency shutdown
- Compressor anti-surge
- High cycle control and on-off applications
- High precision control
Specifications
| | |
|---|
Type: | Pneumatic piston type quarter turn actuator |
| Spring return or double acting versions |
Supply medium: | Air, natural gas (sweet), nitrogen |
Design pressure: | 12 barg (pressure retaining parts) |
Torque range: | 25 Nm - 218765 Nm @ 4 bar, max up to 700000 Nm |
Temperature ranges: | -20 ... +80 °C normal, -20...+125 °C high |
Protection class: | IP66M/IP67M (IEC 60529) |
ATEX class: | Ex 2G IIC T6 / Ex 2D IIC T80C |
Mounting face: | ISO 5211, VDI/VDE 3845 |
